How the Waffle Grid Forms

Look closely at a single cell and the center sits lower than the yarn around it. Repeating that shape across the fabric creates the familiar grid.

Many waffle constructions use tuck or miss positions to control where yarn is held during successive knitting cycles. Machine gauge and stitch length then affect how tight or open the repeat becomes. A compact setting can produce a shallow, neat surface, while a deeper structure makes the individual cells easier to see and feel.

The samples in the 2023 study were made with different cam arrangements and finished with different course and wale densities, so even fabrics that fall into the same broad category can be built in quite different ways.

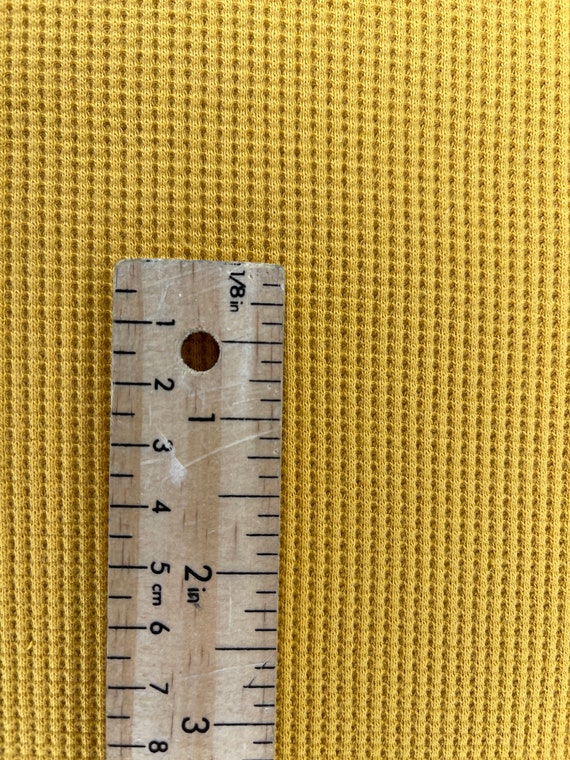

Cell Size Changes the Look of the Garment

Take a shirt front measuring 60 cm across. If the finished cells are about 5 mm wide, roughly 120 cells fit across the panel. At 10 mm, the count drops to around 60.

Those are simple dimensional examples rather than recommended production sizes, but the visual effect is easy to understand. A fine waffle tends to settle into the overall surface of a fitted top. Larger cells stay visible across the chest, sleeves and folds, so the texture becomes a stronger part of the design.

The grid also makes alignment easier to judge. On a large-cell fabric, skew or off-grain cutting is difficult to hide because the rows already give the eye a clear reference.

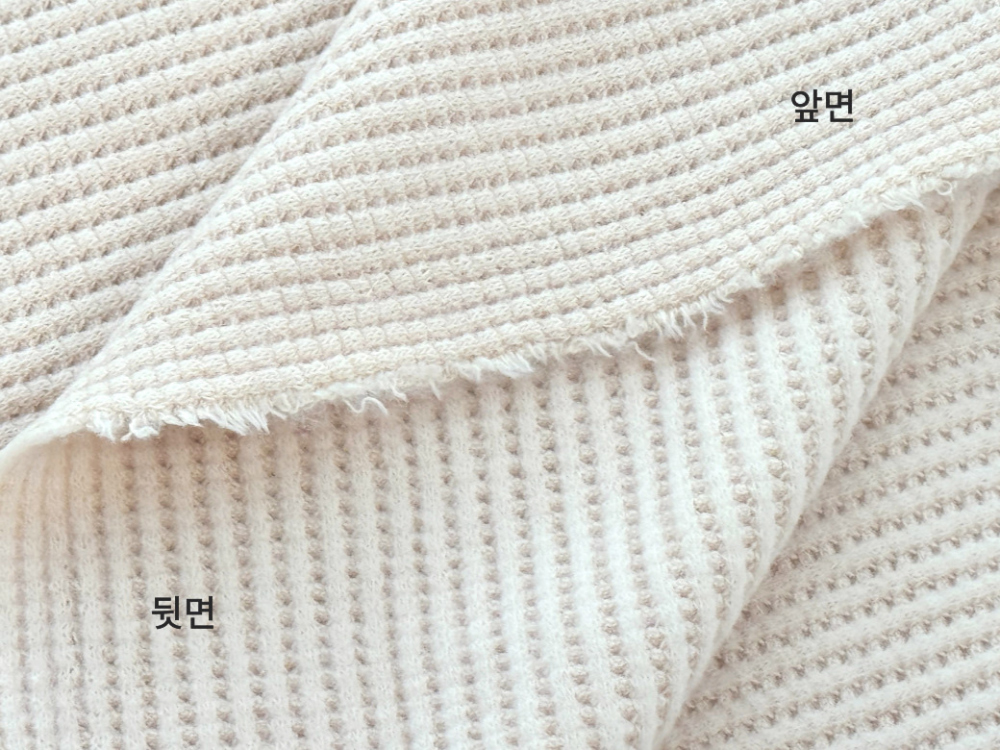

Check the Side That Touches the Body

The reverse of a waffle knit can feel quite different from the face. Some constructions have a clear grid outside and a flatter loop structure underneath. Others keep a noticeable amount of texture on both sides.

That matters on thermal tops and fitted long sleeves because the inside sits against the torso, neckline and underarm for hours. A coarse reverse can become uncomfortable even when the outer face feels soft in the hand.

Both sides of the swatch should be handled before the fabric moves into sampling.

A Real Wash Test on Cotton Waffle

The 2023 study started its dimensional test with waffle samples measured at 35 × 35 cm.

After the stated laundering procedure, the regular waffle measured 33.5 cm in length and 33 cm in width. The tuck-waffle finished at 33 cm × 32.5 cm.

That means the regular waffle lost 1.5 cm in length and 2 cm in width. The tuck-waffle lost 2 cm in length and 2.5 cm in width.

The samples had been conditioned at 65% relative humidity and 68°F for at least 18 hours. Washing took place at 38°C, followed by three five-minute rinses and 10 minutes of hydro-extraction before pressing and final measurement.

These numbers belong to those fabrics under those conditions. A production fabric still needs its own wash test because yarn, finishing and laundering conditions can move the result considerably.

What GSM Actually Tells You

GSM records the mass of one square meter of fabric. It is useful for controlling fabric weight, but it does not tell you how deep the waffle cells are, how tightly the loops are packed or how the fabric will feel once several layers are sewn together.

In the 2023 study, the regular waffle weighed 220 GSM and recorded 488 kPa in its bursting-strength test. The tuck-waffle weighed 200 GSM and recorded 287 kPa.

The two fabrics also differed in yarn count, stitch length, CPI, WPI and loop arrangement. The weight number was only one part of the construction.

A quotation that says “200 GSM cotton waffle” still leaves a lot open.

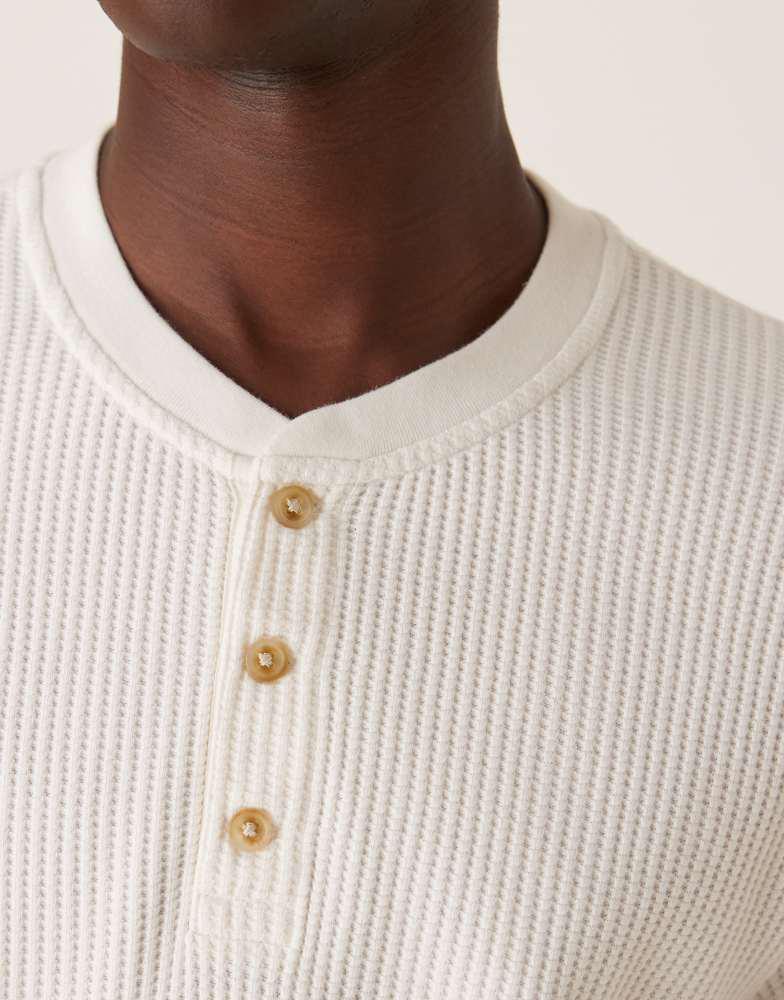

What Happens Around a Henley Placket

Most of a waffle Henley is made from broad single-layer panels, so the texture has plenty of room across the chest and sleeves. The front opening is where the fabric starts to behave differently.

The placket can contain folded waffle, reinforcement and seam allowances before the buttons are even attached. On a deep waffle, that stack becomes bulky quickly. The neckline is being handled at the same time, and a soft fabric can stretch if it is fed under tension during sewing.

The cuff brings another issue. Some body waffles recover well enough to work at the wrist. Others remain enlarged after repeated stretching and need a separate cuff material with better recovery.

Why Waffle Works Well in Thermal Tops

The raised grid gives the fabric physical depth. Small spaces form through the structure, and air can sit within those spaces while the garment is being worn.

Warmth still depends on thickness, porosity, stitch density, fiber, finishing and fit. A close base layer keeps the textile near the body, while a looser long-sleeve top allows more movement inside the garment.

That is why two products sold as waffle thermals can feel very different even when the surface looks similar.

Moisture Performance Needs Its Own Measurements

When a cotton waffle becomes damp, several things happen at once. Moisture enters the fiber, liquid can move along yarn and fabric capillaries, and the textile eventually begins to dry.

Textile testing separates those behaviors. AATCC TM195 covers liquid moisture-management properties. TM197 measures vertical wicking. TM199 addresses drying time, and TM200 covers drying rate under airflow.

The waffle grid can influence how liquid moves through the fabric, but fiber type, yarn structure, finish, thickness and stitch setting are all part of the result. For an active base layer, an actual test value is much more useful than a general “moisture-wicking” claim.

Yarn Changes the Hand Feel Before Knitting Begins

Cotton reaches the knitting machine as yarn, and that yarn already has its own count, twist, surface hairiness and internal structure.

Ring, rotor/open-end and air-jet spinning produce different yarn characteristics. A fine, smooth yarn can give a small-cell waffle a clean surface. Coarser yarn makes the raised parts feel more pronounced. Twist affects firmness and the amount of fiber sitting away from the yarn body.

Knitting density and finishing change the hand again afterward, so fiber composition and GSM cannot tell you everything about how a waffle will feel.

Where Pilling Usually Appears

On a long-sleeve waffle top, abrasion tends to build around the elbows, cuffs, lower front body and areas that rub against bags, seat belts or furniture.

A published commercial waffle gives one useful example. The fabric is listed as 96% cotton / 4% spandex, 210 GSM, with a declared pilling grade of 3.

Open waffle structures can also snag when exposed loops catch jewelry, rough hardware or hook-and-loop fasteners. Pilling and snagging should be checked separately because they develop in different ways.

Knee Growth in Waffle Lounge Pants

Waffle lounge pants put repeated extension into the knee during sitting, walking and bending. The seat stays under load, and pocket openings are pulled throughout normal wear.

A fabric with weak recovery can remain enlarged after those movements, leaving a visible bubble around the knee or a looser shape through the seat.

ASTM D2594 is used for stretch properties of low-power knitted fabrics and appears in AATCC's knit-fabric proficiency testing program.

A simple garment trial can add useful information. Mark a fixed distance across the knee, wear the pants through repeated sitting and bending, allow a defined recovery period, then measure the same area again.

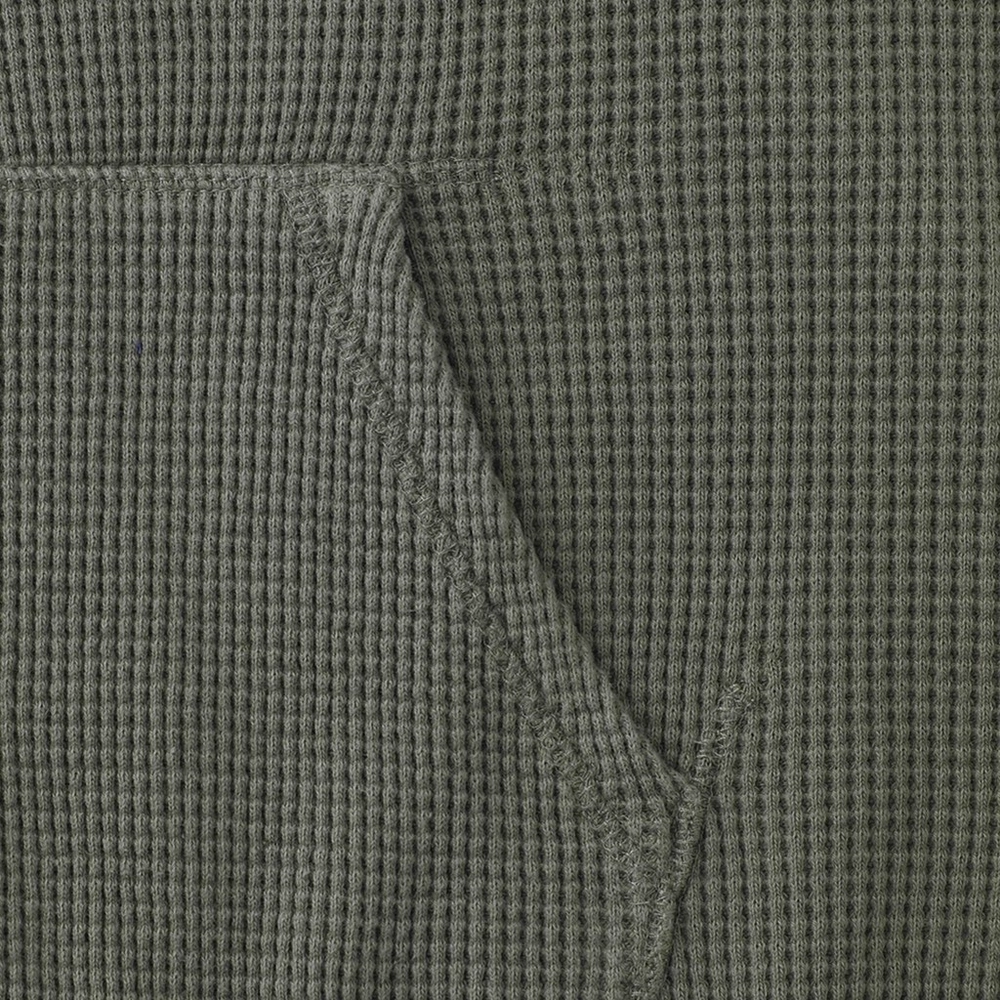

Heavy Waffle Builds Bulk at Seams

A heavyweight waffle becomes much thicker once several layers meet.

The hood already contains multiple layers. Center seams, folded edges and neckline attachment add more material around the same area. A kangaroo pocket places another piece of waffle over the body, and its perimeter adds folded thickness again. Cuffs and hem bands create similar concentrations.

Deep waffle can also react visibly to machine pressure. If the presser foot compresses the texture too much, a flatter strip can appear beside the seam. Feeding can become uneven when the machine moves from a single layer into a thick junction.

Spirality Is Easy to See on a Waffle Grid

The regular rows in a waffle fabric make rotation obvious after laundering. Once the grid starts leaning, the change is easier to notice than it would be on a plain surface.

The 2023 study recorded 4% spirality for its regular waffle and 4.5% for the tuck-waffle.

A separate commercial waffle specification lists 5% spirality after laundering for its 210 GSM cotton-spandex fabric.

AATCC TM179-2025 covers changes in fabric skew after home laundering. Marks are made before washing and checked again afterward so the movement can be measured.

Waffle, Honeycomb and Thermal Naming

Supplier terminology is not completely consistent.

Waffle knit usually refers to a recessed cellular surface. Honeycomb knit is used for related structures and can also refer to a mill-specific repeat. Thermal knit is often attached to fabrics intended for insulating or base-layer garments.

For sourcing, the name should be supported by a swatch or clear surface reference. GSM, usable width, finished cell size, composition and stretch information can then be written beside it.

Waffle Texture Can Be Woven

Waffle surfaces also appear in woven textiles. Warp and weft yarns create the recessed structure used in many robes, towels and blankets.

Waffle knit is built from interconnected loops and is widely used for thermals, Henleys, lounge tops and other clothing that needs the movement of a knit.

Small supplier photographs can make both surfaces look similar, so waffle knit is the clearer wording when a knitted construction is required.

What a Commercial Waffle Specification Can Include

One published commercial example is listed as 96% cotton / 4% spandex, 210 GSM, with a physical width of 57 in / 145 cm and a usable width of 55 in / 140 cm.

Its published technical data also includes:

• longitudinal dimensional change: 8%
• transverse dimensional change: 8%
• spirality after laundering: 5%
• pilling: grade 3
• wash color change: 3.0–4.0
• wash staining: 3.0–4.0
• dry crocking: 3.0–4.0
• wet crocking: 3
• perspiration color change: 3.0–4.0
• perspiration staining: 3.0–4.0

These figures apply to that specific commercial fabric. A real production specification often goes far beyond fiber percentage and GSM.

Testing the Fabric Before Cutting

Dimensional testing can begin while the material is still in roll form.

AATCC TM135-2025 covers changes in fabric length and width after home laundering. The method uses defined washing and drying conditions, which makes the result easier to compare from one test to the next.

The swatch should be marked before washing so the same areas can be measured afterward. Length, width and several cell dimensions can be recorded, and photographs with a ruler help document changes in the surface.

Testing the Finished Garment

Once the waffle has been cut and sewn, the garment introduces new areas that were not present on the original swatch. Side seams, plackets, necklines, cuffs and trims can all affect how the piece behaves in the wash.

AATCC TM150-2025 covers dimensional changes in garments after home laundering.

A finished Henley may show movement around the placket or neckline even when the original fabric test looked acceptable. Garment measurements should therefore be taken after the same laundering procedure used for production approval.

Cell Scale on the Finished Garment

Fine waffle works naturally on narrow sleeves and fitted torsos because the grid stays relatively quiet across smaller panels. Lightweight thermals and Henleys often use this type of surface well.

Larger cells become more noticeable across broad body panels and relaxed sleeves. Oversized pullovers give the repeat enough uninterrupted space to remain visible through folds and movement.

Trim should be judged beside the actual body fabric during sampling because the depth and scale of the grid affect how the cuff and hem sit with the rest of the garment.

What Waffle Knit Feels Like Against the Skin

The raised parts of the fabric touch the skin first. The recessed cells sit farther away depending on their depth.

Fine cotton yarn can make those contact points feel soft and dry. Coarse yarn makes the texture more obvious. Viscose-rich waffle tends to drape closer to the body and can feel softer in movement.

The reverse loop structure also affects comfort, especially on fitted thermal tops where the inside remains against the skin for long periods.

Keep the Same Swatch Through Wash Approval

Mark one swatch before testing and keep it through the approval process.

Record its length, width and several cell measurements. Photograph both surfaces with a ruler in the frame. After the agreed laundering procedure and conditioning period, return to the same marks.

Check the overall dimensions, the shape of the cells, surface flattening, skew and any local distortion around the marked area.

AATCC TM135 can be used for dimensional change at the fabric stage, while TM179 covers skew after home laundering.

Washing Waffle Knit at Home

Follow the care label on the finished garment because fiber blend, yarn, finishing and construction all affect how a particular waffle responds to laundering.

Cotton-rich waffle can change dimensions as the knitted structure relaxes. Heavy waffle also carries much more water when saturated, which increases the load on the shoulders and neckline during drying.

Check the garment shape while it is still damp. Side seams, neckline position and body length are easier to inspect before the fabric dries completely.

The laundering conditions used during product development should match the care instructions supplied with the finished garment.
